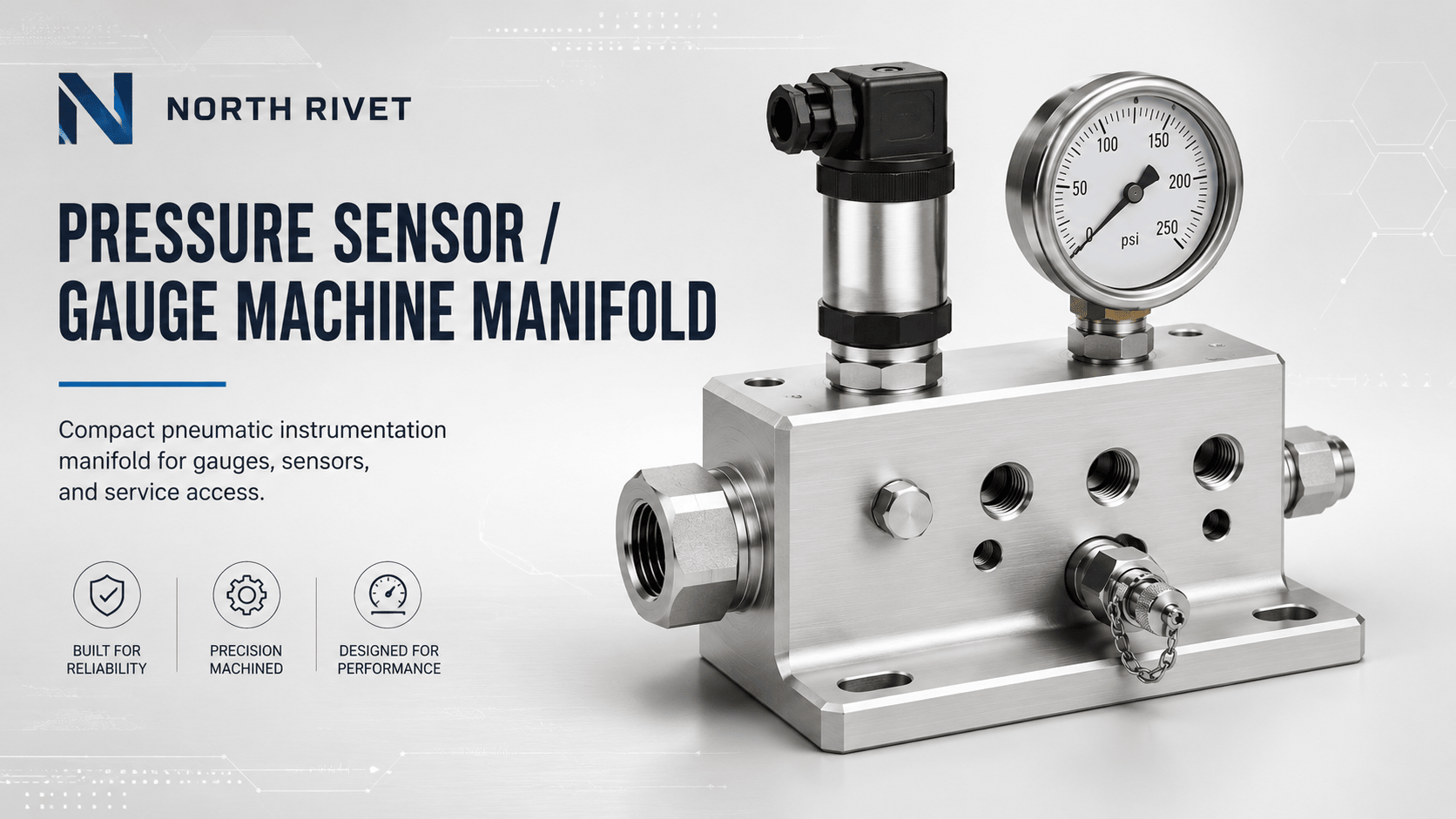

Pressure Sensor / Gauge Machine Manifold
A compact machine-mounted pneumatic instrumentation manifold intended to consolidate a pressure gauge, electronic pressure sensor, and service access into one clean assembly.
This concept targets OEM machinery, automation systems, retrofits, and test equipment where instrumentation is otherwise assembled from scattered tees, fittings, and brackets.
Purpose-built for machine instrumentation
The design direction is centered on making pressure instrumentation easier to mount, inspect, service, and integrate into industrial equipment.
- Single compact mounting point for gauge and electronic pressure sensing
- Dedicated service or test access
- Cleaner tubing and fitting layout
- Machine-frame-friendly mounting
- Potential configurations for 4–20 mA pressure instrumentation
Potential applications
- Pneumatic machine controls
- Automation cells and fixtures
- Industrial test equipment
- Machine retrofits
- Pressure monitoring and diagnostics
Concept priorities
Instrumentation
Organized provisions for both a mechanical pressure gauge and an electronic pressure transducer.
Serviceability
Accessible ports intended to simplify troubleshooting, verification, and maintenance.
Machine Integration
A compact CNC-machined body intended for clean installation on industrial machinery and automation equipment.
Have an application for this concept?
North Rivet is evaluating demand before committing tooling and machine time to the first validation unit. If this type of manifold would solve an instrumentation or mounting problem on your equipment, we would like to hear about the application.
